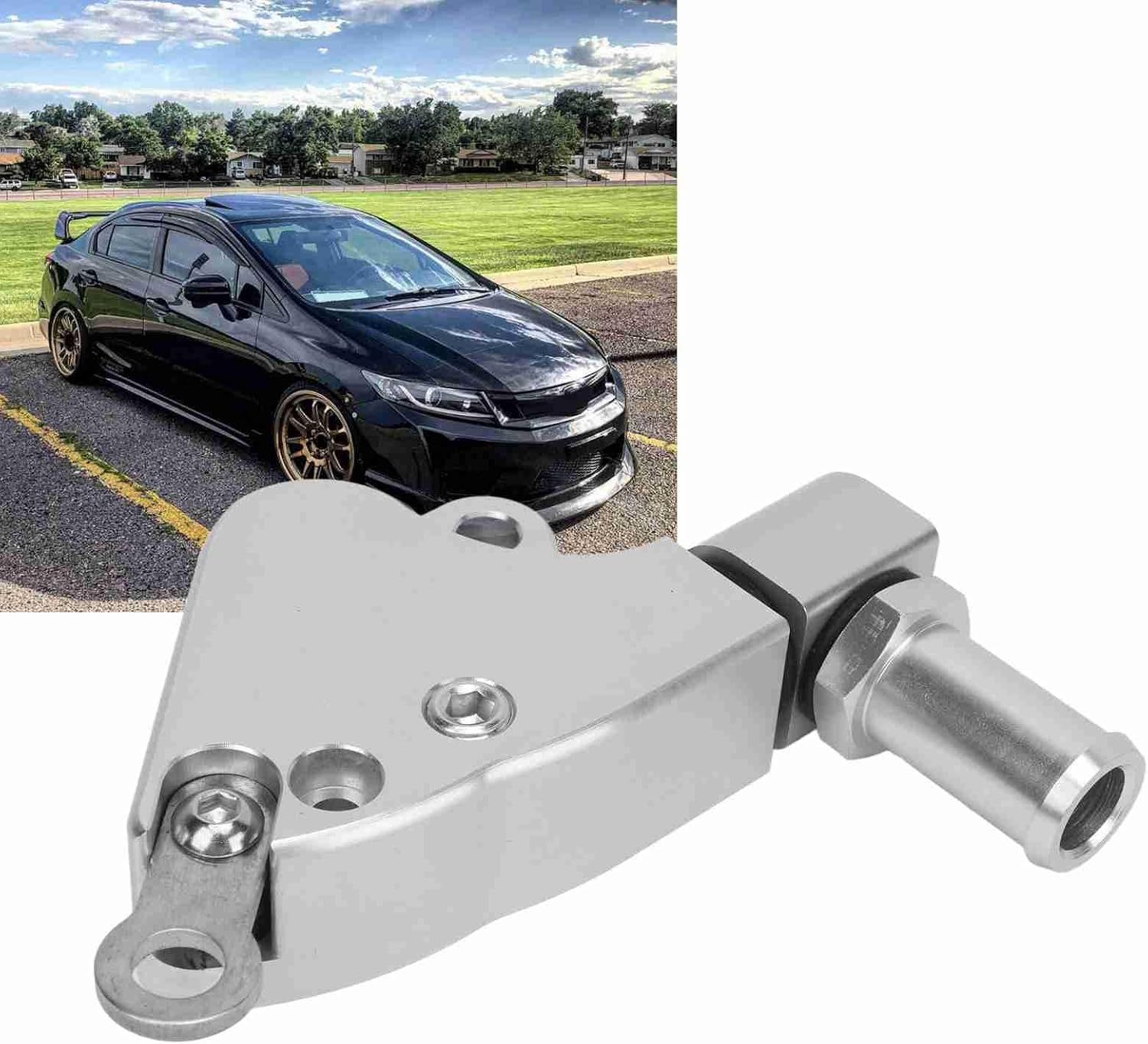

Aramox K Series Engine Coolant Adapter Plate for K20 K24, High Strength Intake Manifold Construction

Spec:Material: ABS + MetalHow to Use:Tools Required for Installation: A 6.5mm drill bit(not included) is required for drilling the blind hole on the adapter, a 5mm drill bit(not included) for drilling the head, and an M6x1.0 tap. Installation Procedure: During installation, ensure that the adapter is directly installed onto the head (do not install any washers between the head and the adapter). Start by using a 6.5mm or 1/4 drill bit to complete the blind hole on the adapter. , you will need to install the cap and adapter onto the head. This will ensure proper alignment of the holes. After marking the positions for drilling, remove the cap and adapter. Use tape or block off the head to prevent anything from entering the internal chambers used for intake and cooling fluids. Using a 5mm or 13/64 drill bit(not included), drill the head to a depth of at least 11mm (the depth of the ), but not exceeding 14mm. You can tape the drill bit to ensure that you do not drill too deep. Once the hole is drilled, you will run the tap. Use an M6x1.0 tap and lubricating oil(both not included), and proceed slowly. Be careful not to tap too deeply. You can start with a standard tap to begin the thread, but use a bottoming tap to complete the thread. This will allow theto fully engage with most of the threaded hole. Begin tapping the head slowly and frequently check the fit of the adapter. You want the adapter to fit snugly, but avoid tapping the hole too far.Package List:1 x Coolant Adapter Plate2 x Screw

• [EASY INSTALLATION] - Requires basic like a 6.5mm drill bit, 5mm drill bit, and M6x1.0 Tap for tapping the head.
• Tight Fit: The intake manifold coolant adapter can be installed using spring loaded plate or by tapping the head, to ensure a tight fit and seal. It can make you machine in good condition.
• Sturdy ABS + Metal Construction: The intake manifold coolant adapter is made from high strength metal material, anti rust, wearproof, sturdy and wear-resistant. The premium quality can accompany you for a long time.
• Tools Required for Installation: Tapping the head will require a 6.5mm drill bit (to finish the blind hole in the adapter), 5mm drill bit (to drill the head), and M6x1.0 Tap.
• Application: Intake manifold coolant adapter is designed for K20 K24 K Series Swap, is a simple solution for installing the K20 type cap on the K24 head.
